Heat PVC Shrinkable Red Wine Bottle Capsule with Tear-off Strip Thermal Shrinkage Cap
Ideal for cable end and cable termination sealing of electrical cable,communication cables,and other
industrial cabling pipeline.
Suitable for energy supply infrastructure, chemical factories, oil refineries, metallurgy, harbor or
other locations where safety and reliability of energy supplies are vital for daily operations.

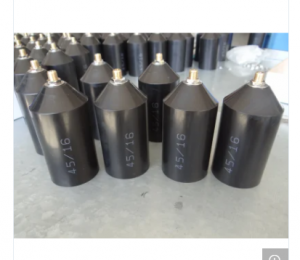

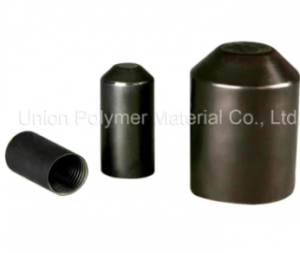

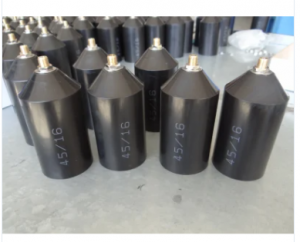

Y2 Heat Shrinkable Cable End Cap
Features
Cross-linked polyolefin Operating temperature: -55~105ºC
Spiral adhesive liner Shrink temperature: 125ºC
Excellent chemical and solvent resistance Shrink ratio: 2:1
Compatible with lead cables and PE jacketed cables
Not applicable to gas-filled air-tight cable
| Y2 Heat Shrinkable Cable End Cap | ||||
| Features | ||||
| Cross-linked polyolefin | Operating temperature: -55~105ºC | |||
| Spiral adhesive liner | Shrink temperature: 125ºC | |||
| Excellent chemical and solvent resistance | Shrink ratio: 2:1 | |||
| Compatible with lead cables and PE jacketed cables | ||||
| Not applicable to gas-filled air-tight cable | ||||
| Technical Data | ||||
| Property | Test method | Values | ||
| Physical | Tensile strength | ASTM D2671 | ≥12 MPa | |
| Breakdown elongation | ASTM D2671 | ≥ 400% | ||
| Aging (136ºC /168hrs) | Tensile strength | ASTM D2671 | ≥10 MPa | |
| Breakdown elongation | ASTM D2671 | ≥300% | ||
| Density | ASTM D2671 | 1.1~1.2 | ||
| Thermal endurance | IEC 216 | -55~105ºC | ||
| Low temperature flexibility(-55 ºC/4hrs) | ASTM D2671 | No cracking | ||
| Water absorption | ASTM D570 | ≤0.5% | ||
| Heat shock (200 ºC/4hrs) | ASTM D2671 | No drop, no flow | ||
| Electrical | Volume resistivity | ASTM D2671 | ≥1014 Ω.cm | |
| Dielectric strength | ASTM D2671 | ≥14 KV/mm | ||
| Dimensions | ||||||
| Reference | As supplied (mm) | After free recovered (mm) | ||||
| UPM Y2 | H | A | P nom. | P max. | H | W |
| 13/4 | 13 | 15 | 40 | 40 | 4 | 2.5 |
| 15/4.5 | 15 | 18 | 45 | 45 | 4.5 | 2.5 |
| 19/6 | 19 | 25 | 55 | 55 | 6 | 2.8 |
| 25/8 | 25 | 30 | 68 | 68 | 8 | 2.8 |
| 35/12 | 35 | 35 | 83 | 90 | 12 | 3.3 |
| 40/15 | 40 | 35 | 90 | 100 | 15 | 3.3 |
| 55/25 | 55 | 50 | 103 | 125 | 25 | 3.3 |
| 63/24 | 63 | 70 | 140 | 140 | 24 | 3.5 |
| 75/35 | 75 | 55 | 120 | 140 | 35 | 4.0 |
| 100/50 | 100 | 70 | 140 | 200 | 50 | 3.5 |
| 124/60 | 125 | 70 | 150 | 150 | 57 | 3.8 |
| 148/57 | 148 | 70 | 150 | 150 | 57 | 4.1 |
| 160/57 | 160 | 70 | 150 | 150 | 57 | 4.5 |
