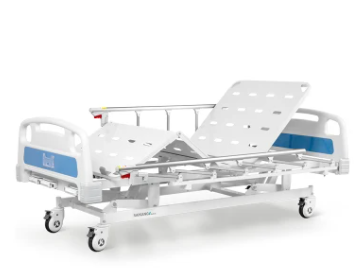

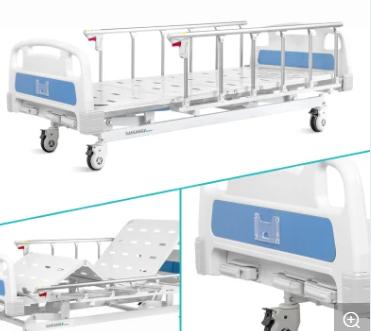

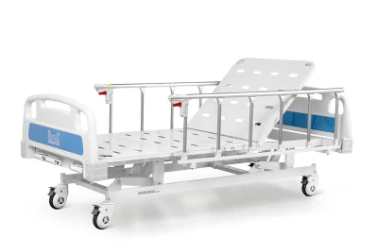

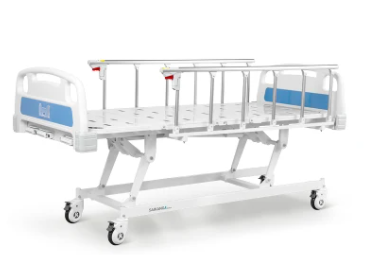

Medical One Crank Manual Hospital Bed with ABS Headboards
Product Paramenters
| External size (LxWxH) | 2110x960x400-710 mm |
| Mattress platform | 1925x820 mm |
| Safe working load | 135 kg |
| Back-rest adjustment | 0-75° (±10°) |
| Knee-rest adjustment | 0-35° (±10°) |
| Manual Cranks | 3pcs |
| 5" Covered Castors | 4pcs |
| Foldable Side Rail | 1set |
| ABS Bed Ends with Safe Lock | 1set |
| I V Pole | 1set |
| I V Pole Prevision | 4pcs |
| Drainage Hook | 4pcs |
| Mattress Holder | 2pcs |
Products Description
1. Steels | Painting
Baosteel from Fortune Global 500 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm,brightness 60°, paint can resist 50kg impact.
2. Plastic
Environmental plastic can be sterilized in 100°C, tensile upto 30MPa Virgin ABS material
3. Bumper Cover
Reduce the impact of the collision,safe and slinky.
4. Hand Control
Retractable hand crank, 100,000 times remaining intact
Extreme protection device, sounds when tipped to the max position, Strong pallets to increase the bed height adjustment(400-710mm)
5. Design
Mordern design.Use new and strong inserted ABS fire-proof panel avoid off.
Easy to be cleaned and installed. Net weight over 3.6kg.
6. Platform
Stamping forming platform, smooth surface no welding scar, bearing 135KG load.
Option resin X-ray translucent platform.
7.Siderail
Aluminum alloy side rail, 6-staff,collapsed type with safe lock.
8.Castors
5" covered casters
TPR tire no worn out after running 30KM, save anti-winding hard shell,united forming without bolts. Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500 time.
